CNC (Computer Numerical Control) machining represents a pinnacle of precision engineering, enabling automated control of machining tools with unparalleled accuracy and efficiency. From prototyping to mass production, CNC machining plays a pivotal role across industries by transforming digital designs into high-quality, intricate components.
Understanding CNC Machining
CNC machining involves automated machine tools controlled by computer programs (CAD/CAM) to remove material from a workpiece. This subtractive manufacturing process encompasses various techniques:
1. Milling: UtiliSes rotary cutters to remove material from a workpiece, producing flat or contoured surfaces. CNC mills range from 3-axis to multi-axis machines capable of intricate geometries.
2. Turning: Rotates a workpiece against a cutting tool to create cylindrical shapes such as shafts, rods, and threads. CNC lathes automate turning operations, ensuring consistency and precision.
3. Drilling and Tapping: CNC drills and taps create precise holes and threads in materials, critical for assembly and functionality in complex assemblies.

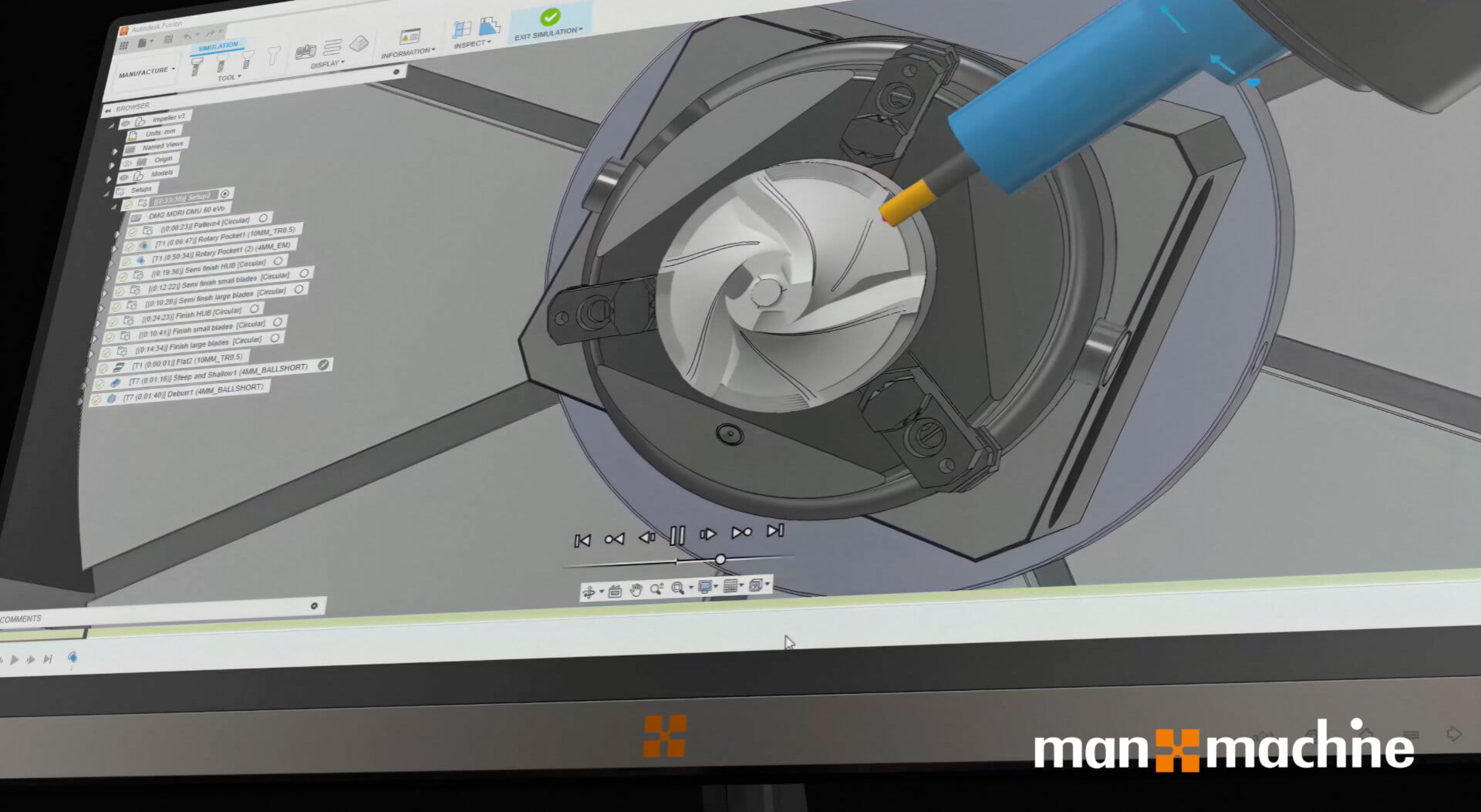

CAD CNC milling on small turbine component at Autodesk facility in Birmingham
CAD CNC milling on small turbine component at Autodesk facility in Birmingham
CAD CNC milling on small turbine component at Autodesk facility in Birmingham
CAD CNC milling on small turbine component at Autodesk facility in Birmingham
CAD CNC milling on small turbine component at Autodesk facility in Birmingham
Applications Across Industries
1. Aerospace and Defence: CNC machining produces critical components like aircraft structural parts, turbine blades, and missile guidance systems. High precision and material integrity are essential for meeting stringent aerospace standards.
2. Automotive Manufacturing: From engine components to chassis parts, CNC machining ensures dimensional accuracy, mechanical strength, and durability in automotive applications. Mass production capabilities support efficiency and consistency.
3. Medical Devices: CNC machining fabricates surgical instruments, orthopedic implants, and medical device components from biocompatible materials. High precision and repeatability meet strict regulatory requirements and patient-specific needs.
Innovations Driving CNC Machining
1. Advanced CAD/CAM Software: Integrated software solutions streamline design-to-manufacturing processes, optimising tool paths, and reducing programming time.
2. Multi-axis Machining: 5-axis CNC machines enable simultaneous machining from multiple angles, expanding capabilities for complex geometries and reducing setup times.

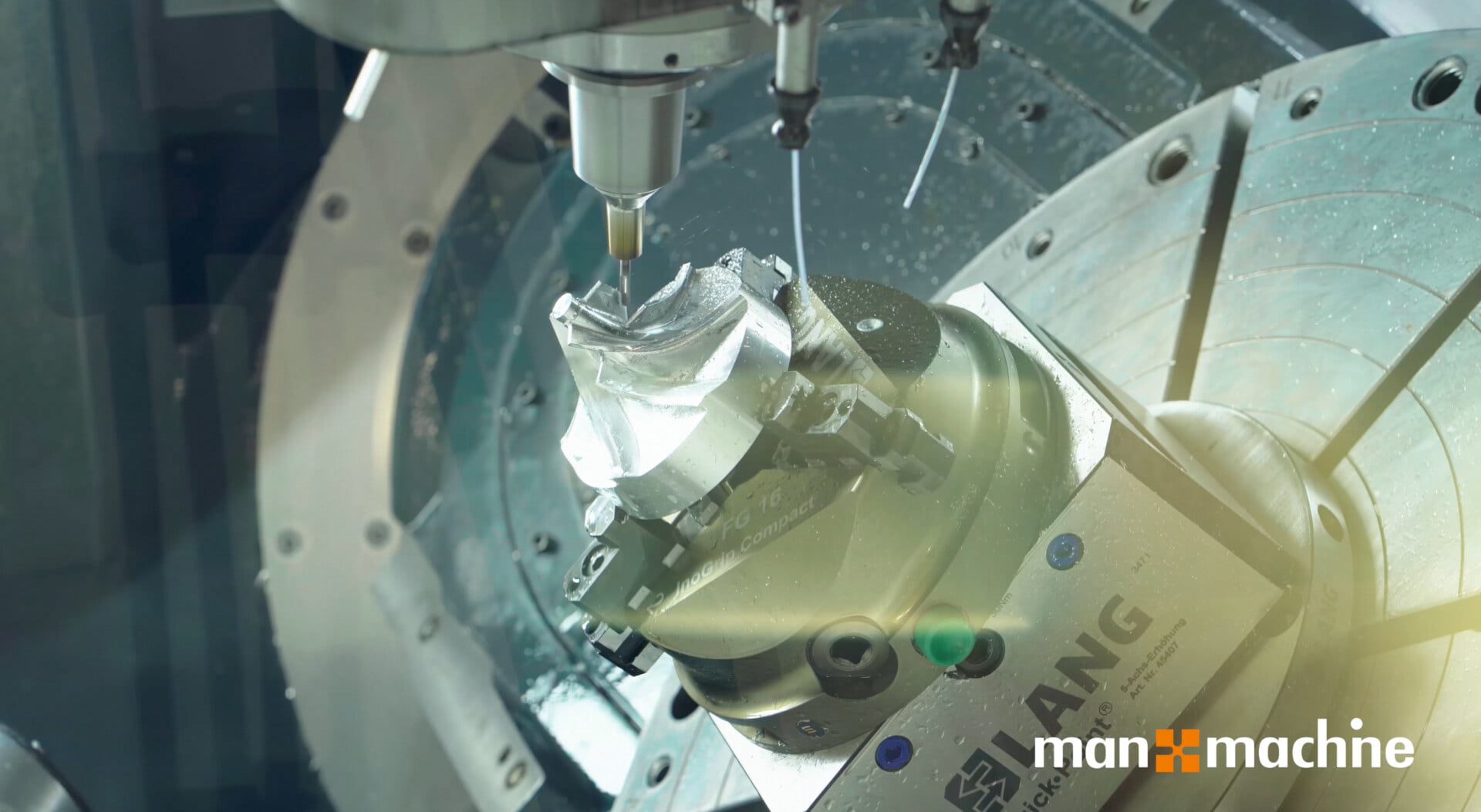

subtractive-manufacturing-cnc-machining-at-autodesk-facility
The Role of Video Production in Showcasing CNC Machining
Video production serves as a powerful tool to educate, inform, and inspire audiences about the capabilities and innovations in CNC machining:
1. Visual Demonstrations: Videos illustrate CNC machining processes in action, showcasing tool movements, material removal techniques, and intricate part production. Visual demonstrations highlight the precision and efficiency of CNC technology.
2. Technology Insights: Documentary-style videos featuring interviews with CNC programmers, machinists, and industry experts provide insights into process optimisation, tool selection, and quality assurance practices. These insights demonstrate the expertise and innovation driving CNC machining advancements.
3. Case Studies and Applications: Videos showcase real-world applications of CNC machining, from prototype development to large-scale production. Case studies highlight successful projects, cost efficiencies, and the competitive advantages of leveraging CNC technology.
Conclusion
CNC machining continues to revolutionise manufacturing with its precision, versatility, and automation capabilities. As industries evolve and demand high-quality, customized components, effective communication through video production becomes essential in showcasing the innovations and applications of CNC machining, driving awareness and adoption globally.
